High Flux Traffic Light
300MM(12 INCH) High Flux Traffic SignalCompliance with CE, EN12368, ISO9001Optical Fresnel lens for
Consultation

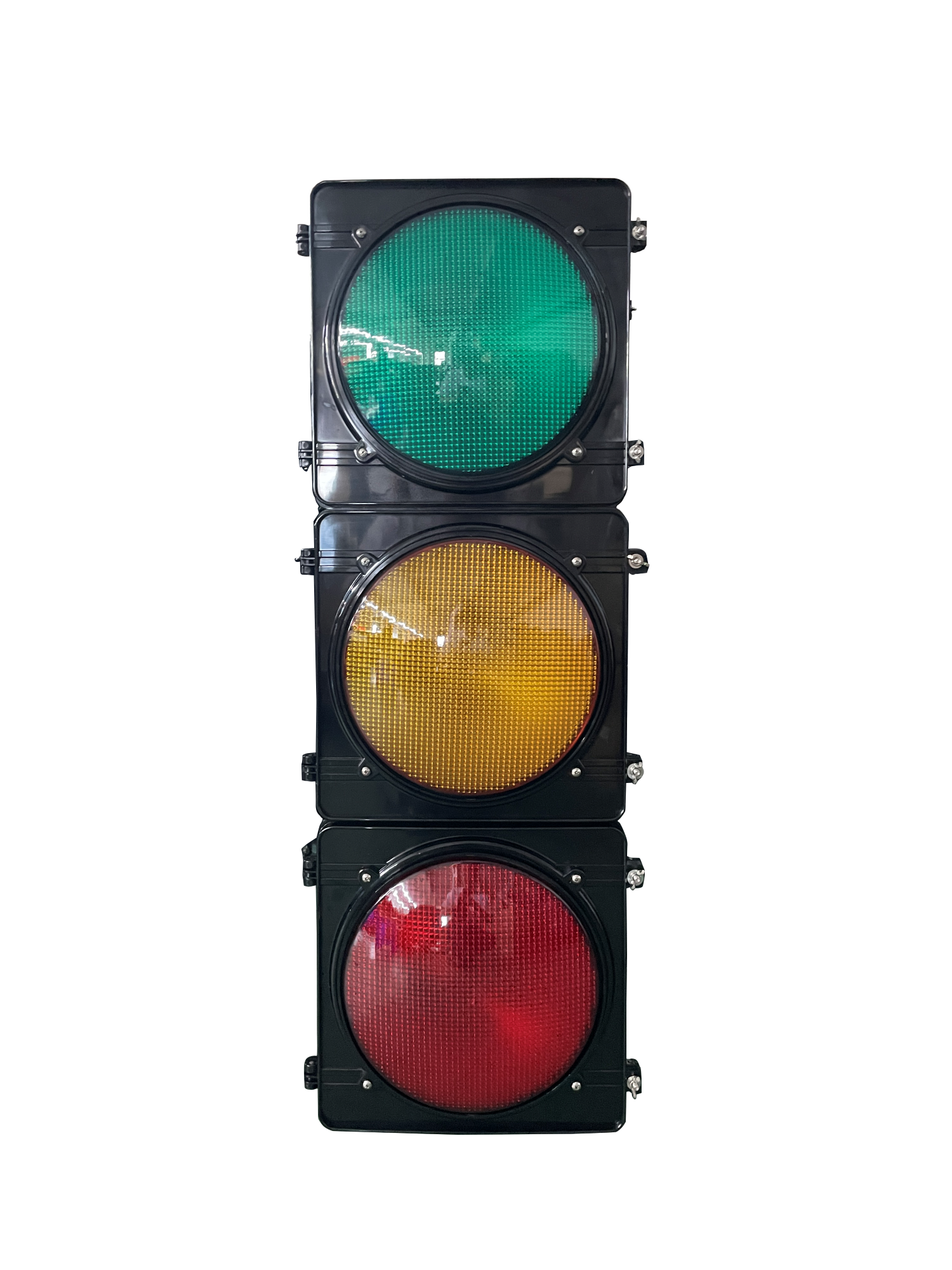

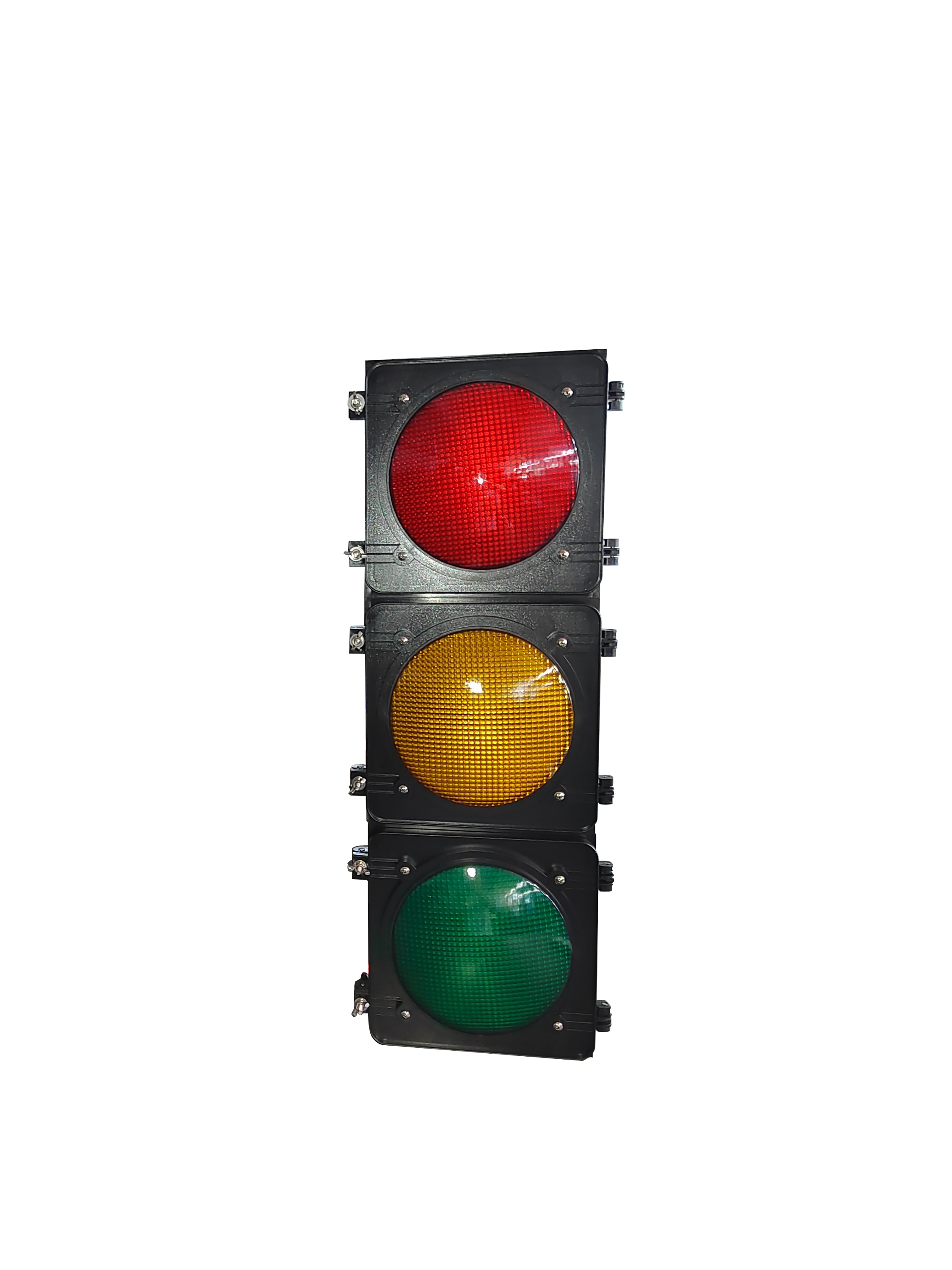

300MM(12 INCH) High Flux Traffic Signal
Compliance with CE, EN12368, ISO9001
Optical Fresnel lens for even light distribution
Anti-phantom effect minimized, optimal viewing angle
Excellent optical performance with high brightness LED
Low energy consumption with LED light source
Long life cycle – more than 100,000 working hours
Highly durable polycarbonate housing, UV-light resistant
Modular design – easy installation and maintenance
Easy access using of wingnuts open system
L-shaped/arm-shaped mounting brackets are optional
Parameter:
| Diameter | 300mm(12inch) |
| Optical Performance | Conform to EN12368 ,ISO9001,CE |
| View Distance | ≥1000Meter |
| Input Voltage | 12~24VDC or 120VAC or 230VAC |
| Power Factor | ＞ 0.9 |
| Power consumption | >8watt |
| Working Temperature | -40℃ ~ +60℃ |
| Wateproof level | IP 65 |
| Material of Lens/Housing | UV-stabilized polycarbonate |
| Color of Housing | Black/Yellow |
